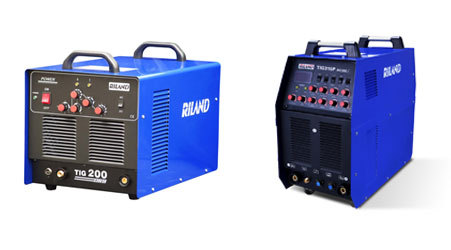

AC /DC Tig Welding Machine ( Mofset)
AC /DC Tig Welding Machine ( Mofset)
- Tig Welding Machine Inverter Base is suitable for light & medium duty work.
- Reactive power correction, inverter, soft switch technology, square wave power supply
- Compact structure, stable welding current, steady and intensive arc, reliable and durable, easy for maintenance
- Strong capability of oxide film liquidates, fantastic welding performance
- Thermostatic protection, over-voltage protection, over-current protection, under-voltage protection
- DC welder suitable for stainless steel, alloy steel, carbon steel, copper, titanium, etc.
- AC welder suitable for aluminum and aluminum alloy
TECHNICAL SPECIFICATION
| Model | TIG 200AC/DC | TIG 250AC/DC | TIG 315P AC/DC |
| Rated Input Voltage (V) | 220+15% | 220+15% | 415+15% |
| Input Frequency (Hz) | 50 | 50 | 50 |
| Rated Power at Max. Current (KVA) | 6.2 | 8.6 | 9 |
| Duty Cycle | 60% | 60% | 60% |
| Weight (Kg) | 22.1 | 23.4 | 33 |
| Dimension (L x W x H) mm | 498 x 328 x 365 | 498 x 328 x 365 | 570 x 364 x 372 |
