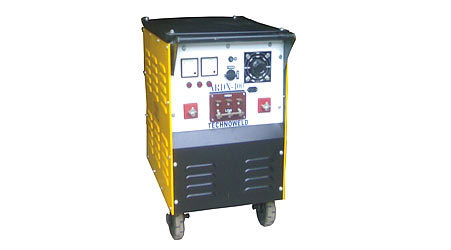

D.C Welding Rectifiers (Diode Based)

D.C Welding Rectifiers (Diode Based)
D.C Welding Rectifiers (Diode Based)
Product Code : 61
Product Description

  • Ideal for Manual Arc Welding (MMAW). It can also be used as Power Source for Plasma Arc Cutting
  • Leading manufacturer of Arc Welding Machines, Electric Arc Welding Machines and Inverter Arc Welding Machines.
  • TIG Welding and Air Gauging etc. Stepless transducing controlled three phase transformer fitted with full wave silicon rectifier assures trouble free service for years
  • The rectifier has arrangement of smooth arc in all positions and almost spatter less x-ray quality welding
  • Suitable for all type of electrodes as 6013, 6010, 7018, 8018, 9018, stainless steel etc.
  • 100% cooper wound with state of art edge winding main transformer
  • Fitted with Ammeter & Voltmeter.
TECHNICAL DATA (Confirm to: IS-4559)
Supply Voltage 3-phase, AC380-440V380-440V380-440V
Frequency50 Hz50 Hz50 Hz
Insulation classHHH
At max Rated KVA223045
Open Circuit Voltage75-80V75-80V75-80V
Current Range30-300A30-400A50-600A
Current at 60% duty cycle300A400A600A
CoolingForced AirForced AirForced Air

(a) Remote control current regulator with 10/20 meters wire.
(b) Set of welding accessories.
