Fume Extracters

Fume Extracters
Fume Extracters
Product Code : 54
Product Description

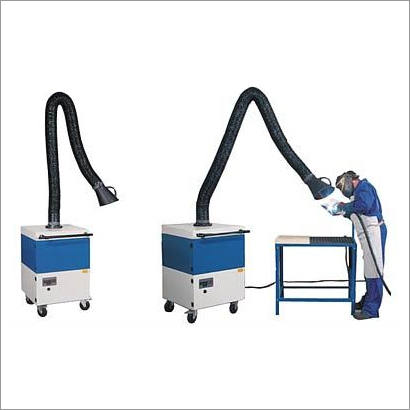

This mobile welding fumes filter is BGIA-certified for all TEKA suction arms (0 150 mm). Separation efficiency is = 99 %. The unit corresponds to the security requirements for units of the welding fume category W3 (high-alloyed steels). When handling the unit correctly, you can use it for circulating air operation because it fulfils the requirements for the exceptional rules according to the new hazardous substances ordinance. A stable construction made of steel plate with continuous powder coating guarantees a low maintenance even under rough conditions. The gross particles are separated in the pre-filter. Afterwards the air is guided through the particle filter where even finest fumes and dusts are separated. The lifting device guarantees an absolute impermeability and therefore the separation efficiency of the filter unit. The air is evacuated on the backside of the unit through an outlet grill and rises up. Thus, at a distance of 1 m you cannot perceive a disturbing air flow any more. The unit is fitted with a high-capacity fan with high negative pressure which guarantees a high volumetric flow even if the filter is saturated.

  • Extensive pre-filter mat
  • Particle filter with separation efficiency = 99 %
  • Optical and acoustic filter monitoring Lifting device
  • Operation hour meter
  • Mains plug with sense of rotation display (for 400 V version) Operation control lamp

  • Auto start-stop
  • Lighting equipment
  • On/off switch via suction hood

  • Aluminium pre-filter Activated carbon element


CAREMASTER - BGIA mechanical filter unit

Maximum volumetric flow of fan2500 m3/h
Maximum pressure2500 Pa
Engine performance1.1 KW
Separation efficiency=99%
Sound LevelCa. 70dB(A)
Dimensions (W x D x H)665 x 681 x 995mm
WeightCa. 122 Kg.


CAREMASTER - BGIA mechanical filter unit fitted with 1 suction element - BGIA Certified


2 Meter3 Meter4 Meter12 Meter
Suction arm hose typeInternal Joints97 300 10097 300 10197 300 102

External Joints97 300 11097 300 11197 300 112
Suction arm pipe typeInternal Joints97 300 12097 300 12197 300 122

External Joints97 300 13097 300 13197 300 132

97 300 140
