SUBMERGED ARC WELDING MACHINE

SUBMERGED ARC WELDING MACHINE
SUBMERGED ARC WELDING MACHINE
Product Code : 67
Product Description
  • SAW is most suitable for heavy structural fabrication jobs where high production is required with excellent welding quality.
  • Fast Production due to high deposition rate of weld material.
  • Simple Operation.
  • Low running cost.

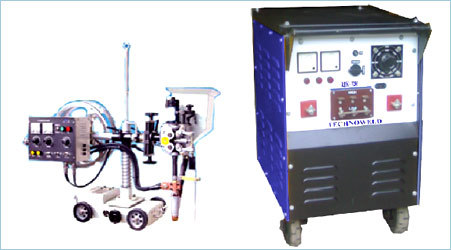

EQUIPMENT CONSISTS OF:
  • POWER SOURCE: Diode Based, CV Type, Most reliable & durable, Fitted with Amps & Volt Meter
  • WELDING HEAD:
    (Carriage Mounted / Boom Mounted) Four Alloy Steel Driven, Quick Changeover of Spool, Thyristor Controlled DC Drive P.M. Motor to Control Speed of trolley & Wire.
  • CONTROL PANEL:
    All Control for Power Source Voltage Setting, Wire Feeder Motor, Carriage, Motor Speed, Reverse / Stop/ Forward Operation Provide on Control.

OPTIONAL:
Rotators (Fix / Self Centering)
Column boom
Welding Position er.
Flux drying oven.
Flux recovery Units.
SET OF ACCESSORIES
Interconnecting Cable - 10 mtr.
Earthing Cable with Earth Clamp - 10mtr.
One spool of wire - 25Kg. Approx.
One bag of flux -25Kg. Approx.
Chipping Hammer & wire brush

Technical Specifications
MODEL SAW - 600 SAW - 800 SAW - 1000 SAW - 1200
Input Supply Voltage 380 - 440 V 380 - 440 V 380 - 440 V 380 - 440 V
Phase 3 3 3 3
Frequency 50 Hz 50 Hz 50 Hz 50 Hz
Primary Current at max. Rated 40 A 55 A 70 A 83 A
Insulation Class H H H H
Welding Current 600 Amps 800 Amps 1000 Amps 1200 Amps
O.C.V. (Setting) 16 - 52 V 16 - 52 V 16 - 52 V 16 - 52 V
KVA 31 42 52 64
Type of Cooling Forced Air Forced Air Forced Air Forced Air
